What is LED display burn-in? This persistent phenomenon has long plagued the commercial display industry. Yet, despite the major investments businesses make in led display, many operators remain unprepared for the risks of permanent image retention.
Read on to learn about what causes LED burn-in, why traditional screens struggle, and how COB technology is the ultimate solution, or go ahead and contact our factory experts for premium COB LED Display solutions.
LED display burn-in, often referred to as ghosting or severe image retention, is a critical pain point for control rooms, broadcast studios, and high-end retail spaces. It occurs when static visuals—such as news tickers, company logos, or software interfaces—are left on a screen for extended periods. Over time, the specific light-emitting diodes displaying these bright, static elements degrade faster than the surrounding pixels. This uneven luminous decay leaves a permanent, faint “ghost” image baked into the screen, even when the content completely changes, ultimately ruining the visual integrity of the display. In this article, we will explore the root causes of screen burn-in on traditional panels and detail why upgrading to Chip on Board (COB) LED technology is the most reliable, future-proof strategy to eliminate this industry-wide headache.

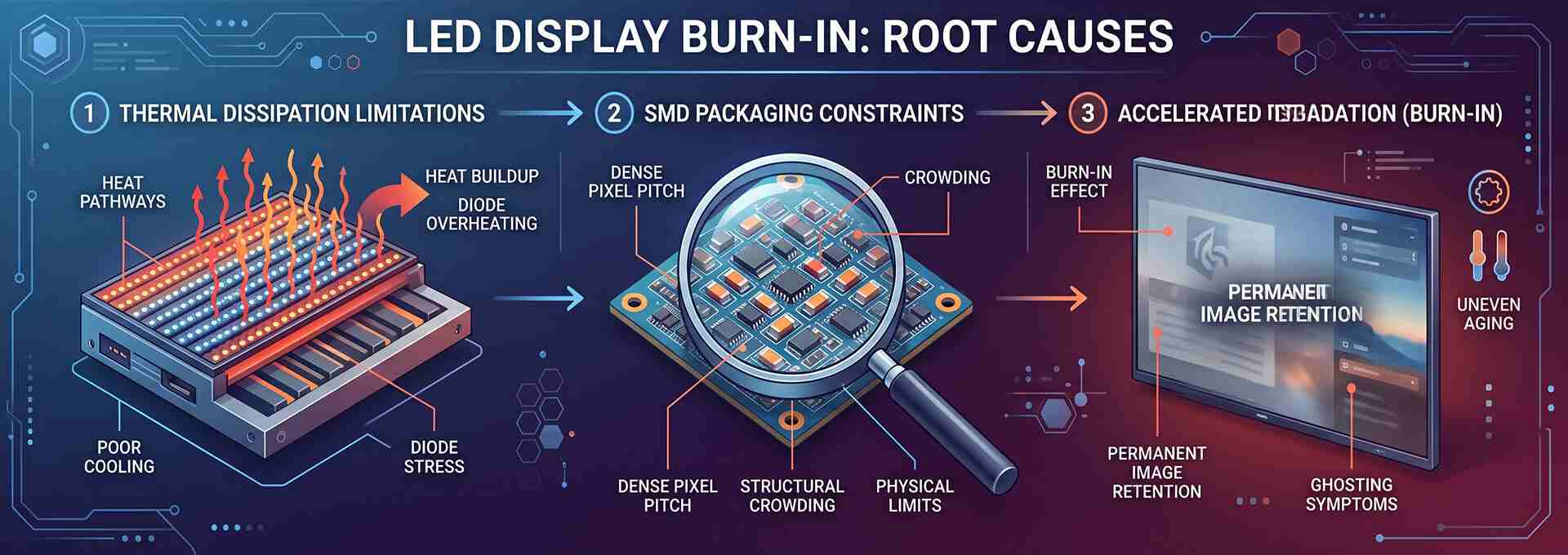

The Root Cause: Heat and SMD Limitations
To truly understand burn-in, we must look at how traditional Surface Mounted Diode (SMD) technology handles thermal dynamics. In SMD video walls, individual LED packages are soldered onto the surface of a printed circuit board (PCB). As these LEDs operate, they inherently generate heat.
Because the thermal conductivity of a traditional SMD bracket is highly restricted, heat accumulates rapidly within the pixel package itself. Prolonged exposure to this localized high temperature accelerates the degradation of the LED chip and its phosphors. When a high-brightness image remains static, those specific, overworked pixels cannot shed heat fast enough. They suffer irreversible thermal fatigue, resulting in the dreaded burn-in effect.

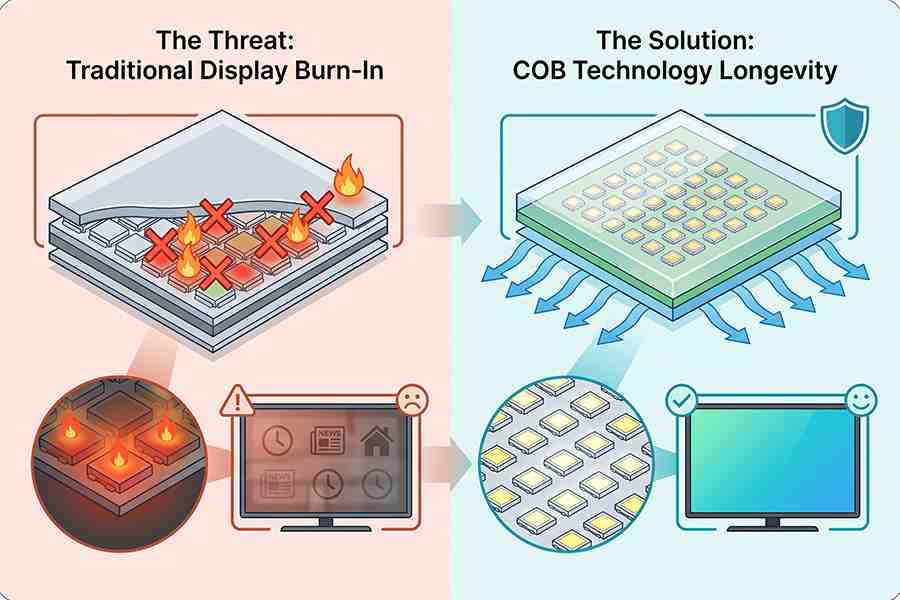

How COB Technology Eliminates the Burn-In Threat
This is where Chip on Board (COB) technology revolutionizes the industry architecture. Unlike traditional SMD, COB technology bypasses the restrictive packaging bracket altogether. Instead, it directly mounts the bare LED chips straight onto the PCB. This fundamental manufacturing shift directly mitigates the root causes of screen burn-in.
1. Unmatched Thermal Dissipation
Because the greatest enemy of an LED chip is heat, thermal management is paramount. By bonding the chips directly to the board, COB displays utilize the entire PCB as a massive, highly efficient heat sink. The thermal resistance path is drastically shortened, allowing heat to dissipate rapidly and evenly across the panel. Because the LEDs operate at a significantly lower and more stable temperature, the rate of luminous decay is profoundly slowed. Even when displaying static interfaces for 24/7 operations, the risk of localized heat damage and subsequent burn-in is virtually eliminated.
2. Superior Energy Efficiency via Flip-Chip
High-end COB LED video walls utilize advanced flip-chip architecture. This means there are no fragile wire bonds blocking the light path. Flip-chips are inherently more energy-efficient, capable of producing higher brightness levels while drawing less power. Lower power consumption translates directly to less heat generation at the source, further safeguarding the screen against pixel fatigue and extending the display’s pristine lifespan.
3. Robust Surface Protection and Stability
Once the chips are mounted, the entire COB module is sealed with a highly durable, clear epoxy resin. This not only achieves a high Ingress Protection (IP) rating against dust, moisture, and physical collisions, but it also locks the micro-components into a stable thermal environment. This rigorous encapsulation prevents oxidation, ensuring that color uniformity and brightness remain consistent across the entire video wall for tens of thousands of hours, completely free of ghosting.
Final Thoughts
For professional B2B environments that rely on constant data visualization—such as security command centers, high-profile corporate lobbies, and broadcast studios—LED display burn-in is an unacceptable operational risk. Upgrading to COB LED technology not only offers tighter pixel pitches and stunning contrast ratios, but it fundamentally resolves the thermal bottleneck that causes image retention. It is a true, future-proof investment for long-term, flawless performance.
Ready to upgrade your visual infrastructure and leave burn-in behind? Reach out to our manufacturing experts today to get a technical consultation and customized quote for your COB LED Video Wall project.
